2D Loops

Dr Andy Evans

[Fullscreen]

2D loops

• In spatial analysis, it is quite common to want to loop through 2D collections.
• To loop through two dimensions, nest loops:
  data = [
[0,1,2],
[3,4,5]
]

for row in data:
    for item in row:
        print (item)

2D loops

• However, it is often necessary to know the coordinates in collection space of the item you're referencing.
  data = [
[0,1,2],
[3,4,5]
]

for i in range(len(data)):
    for j in range(len(data[i])):
        print (data[i][j])

• Nesting loops:
  for i in range(len(data)):
    for j in range(len(data[i])):
        print (data[i][j])
• Variables re-made if a loop runs more than once.
• The outer loop starts, then the inner loop starts.
• When the inner loop has run once, it returns to the start of the inner loop, not the outer loop.
• It keeps doing this until run to completion (j == len(data[i]); i still zero).
• What do you think happens to j then, and where does the code go next?

• Nesting loops:
  for i in range(len(data)):
    for j in range(len(data[i])):
        print (data[i][j])
• Variables re-made if a loop runs more than once.
• j is destroyed, and the outer loop increments to i = 1.
• The inner loop runs again, j recreated as j = 0.
• The inner loop runs to completion.
• Thus, each time the outer loop runs once, the inner loop runs to completion.
• This is repeated until the outer loop completes.
• The code then moves on.

Nested loops

• Let's look at i and j:
  i    j
0    0
0    1
0    2
1    0
1    1
1    2
• This is exactly what we need for moving down a row at a time in our array (i) and then running across each row a space at a time (j).

Issues

• This is surely one of the neatest algorithms ever!
• However, it is easy to make mistakes which are avoided by directly using the target variable to access items.
• There are three problems with the below. Can you spot them?
  for i in range(len(data)):
    for i in range(len(data[j])):
        data[j][i] = 10

2D issues

• The three mistakes are classics that everyone makes, even experienced coders:
  for i in range(len(data)):
    for i in range(len(data[j])):
        data[j][i] = 10
• len(data[j])) Looping through to the wrong dimension length. This is very common if the lengths are hard-wired in, so avoid that.

2D issues

• The three mistakes are classics that everyone makes, even experienced coders:
  for i in range(len(data)):
    for i in range(len(data[j])):
        data[j][i] = 10
• for i Cutting and pasting your outer loop to make your inner loop, and forgetting to change part of the variable use; here, the inner increment should be to j.

2D issues

• The three mistakes are classics that everyone makes, even experienced coders:
  for i in range(len(data)):
    for i in range(len(data[j])):
        data[j][i] = 10
• data[j][i] Switching the indices the wrong way round. This should be data[i][j]. With an non-square array, this will result in trying to read off one side of the array and the program will break. Worse, with a square array, your data will silently be transposed.
• If you get confused, run through your algorithm by hand on paper, using a 2 by 3 non-square array.

Print

• Print inserts spaces when comma separated.
• By default ends with a newline. But this can be overridden (best in scripts):
  print ("a", end=",")
print ("b", end=",")
print ("c")

a,b,c

• When to act
  for i in range(len(data)):
    # Line here done every outer loop
    for j in range(len(data[i])):
        # Line here done every inner loop
        data[i][j] = 10
    # Line here done every outer loop

• When to act
  for i in range(len(data)):
    for j in range(len(data[i])):
        print (data[i][j], end=",")
    print ("")

Moving window algorithms

• A prime example of why we might want the coordinates is moving window algorithms.
• Let's start with a simple allocation to the current item:
  for i in range(len(data)):
    for j in range(len(data[i])):
        data[i][j] = 10

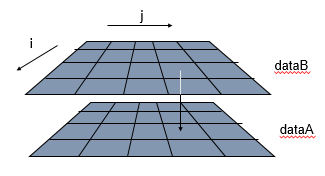

• Looping through the same positions in two collections:
  for i in range(len(dataA)):
    for j in range(len(dataA[i])):
        dataA[i][j] = dataB[i][j]

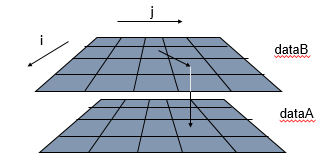

• Looping through two arrays at positions relative to one array (note boundary problem):
  for i in range(len(dataA)):
    for j in range(len(dataA[i])):
        dataA[i][j] = dataB[i-1][j-1]

Boundary problems

• Various solutions.
• Depends on problem context

Wrap boundaries:     Suitable for modelling abstract landscapes Only process as many cells as you can:     Suitable for modelling non- abstract landscapes Only process cells that can have complete processing:     Suitable for image processing

Multiple targets

• If you know the number of elements in the second dimension of a 2D list or tuple, you can:
  data = [
[0,1],
[2,3],
[4,5]
]

for a,b in data:
    print (str(a) + " " + str(b))

zip uses

• Really useful for looping through two sets of data at the same time.
• Here, for example, we use it to make a dictionary from two lists:
  a = [1,2,3,4,5]
b = [10,20,30,40,50]
z = zip(a,b)
d = {}
for t in z:
    d[t[0]] = t[1]
print(d)

Builtins: Iterators

• If you have any doubts about the iterator returning a value, this will return a default value at the end of the iterator.
  next(iterator[, default])
• Obviously make sure it doesn't create an infinite loop.
• If the default isn't given, it produces a warning at the end.
  a = list(range(3))
it = iter(a)
for i in range(5):
    print(next(it, "missing"))
• Prints:
  0
1
2
missing
missing

Reversed(sequence)

• Get a reverse iterator.
  reversed(seq)

a = list(range(3))
ri = reversed(a)
for i in ri:
    print(i)
• Prints:
  2
1
0


Sorting lists

• Two types of sort function:
  a.sort()
# Sorts list a.
# From then on, the list is sorted.
b = sorted(a)
# Copies list a, sorts it, and attaches the copy to b.
• The former is more memory efficient. The latter leaves the original unchanged and will work on tuples, as it generates a list.
• There are a wide variety of options for sorting, including defining the kind of sorting you want. See: https://docs.python.org/3/howto/sorting.html
